Beskrivning

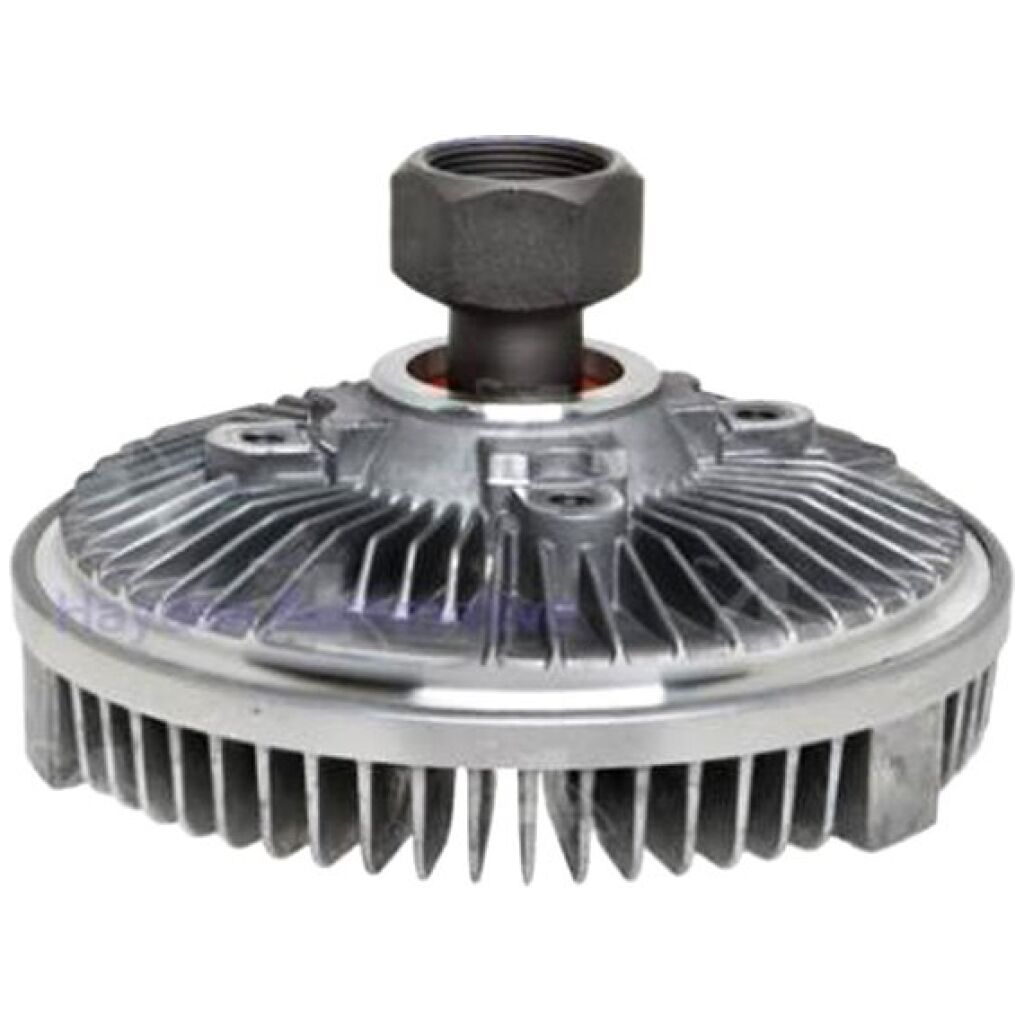

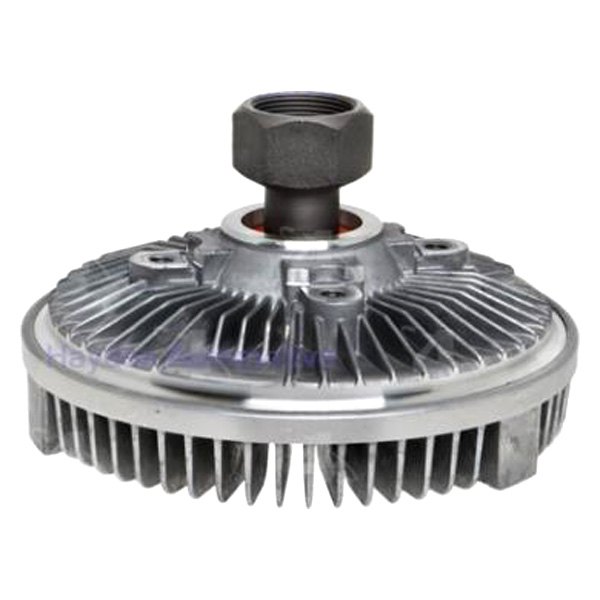

Fläkt Koppling Imperial # 2791
| DODGE | B150 | 1992-1994 |
| DODGE | B1500 | 1995-1998 |
| DODGE | B250 | 1992-1994 |
| DODGE | B2500 | 1995-1998 |
| DODGE | B350 | 1993-1994 |
| DODGE | B3500 | 1995-1998 |
| DODGE | RAM 1500 PICKUP | 1994-2003 |
| DODGE | RAM 1500 VAN | 1999-2003 |
| DODGE | RAM 2500 PICKUP | 1994-2002 |
| DODGE | RAM 2500 VAN | 1999-2003 |
| DODGE | RAM 3500 PICKUP | 1994-2002 |
| DODGE | RAM 3500 VAN | 1997-2003 |
| DODGE | RAMCHARGER | 1999-2001 |
| JEEP | GRAND CHEROKEE | 1994-1998 |
| Bolt Comment | 5/16-18 hole x4 |
| Bolt Quantity | 4 |
| Bolt Thread | 5/16-18 Hole |
| Clutch Type | D – Severe Duty and Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Drawing Type | D |
| Duty Rating | Severe |
| Electronic Clutch? | No |
| Fan Bolt Circle IN | 3.250 |
| Fan Bolt Circle MM | 82.6 |
| Fan Mount Dia. IN | 2.62 |
| Fan Mount Dia. MM | 66.6 |
| Fan Mount Height IN | 1.75 |
| Fan Mount Height MM | 44.3 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.44 (36mm) HEX |
| Mount Dia. MM | 36 HEX |
| Mount Hole Qty | 1 |
| Mount Type | Hex |
| Mounting Hardware? | Not Included |
| New or Reman | New |
| O.E. Replacement? | Yes |
| Overall Dia. IN | 6.450 |
| Overall Dia. MM | 163.8 |
| Overall Height IN | 3.765625 |
| Overall Height MM | 95.6 |
| Overall Width IN | 3.765625 |
| Overall Width MM | 95.758 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.703125 |
| Pilot Depth MM | 17.8 |
| Pilot Dia. IN | M30 X 1.5 Right |
| Rotation | REV |
| Style | Severe Duty |
| Type | Thermal |
| Wire Guage | Uses Original Equipment Connector |
| Wire Quantity | Uses Original Equipment Connector |
