Beskrivning

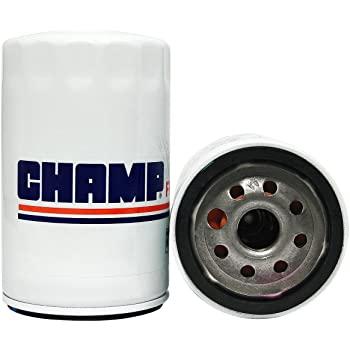

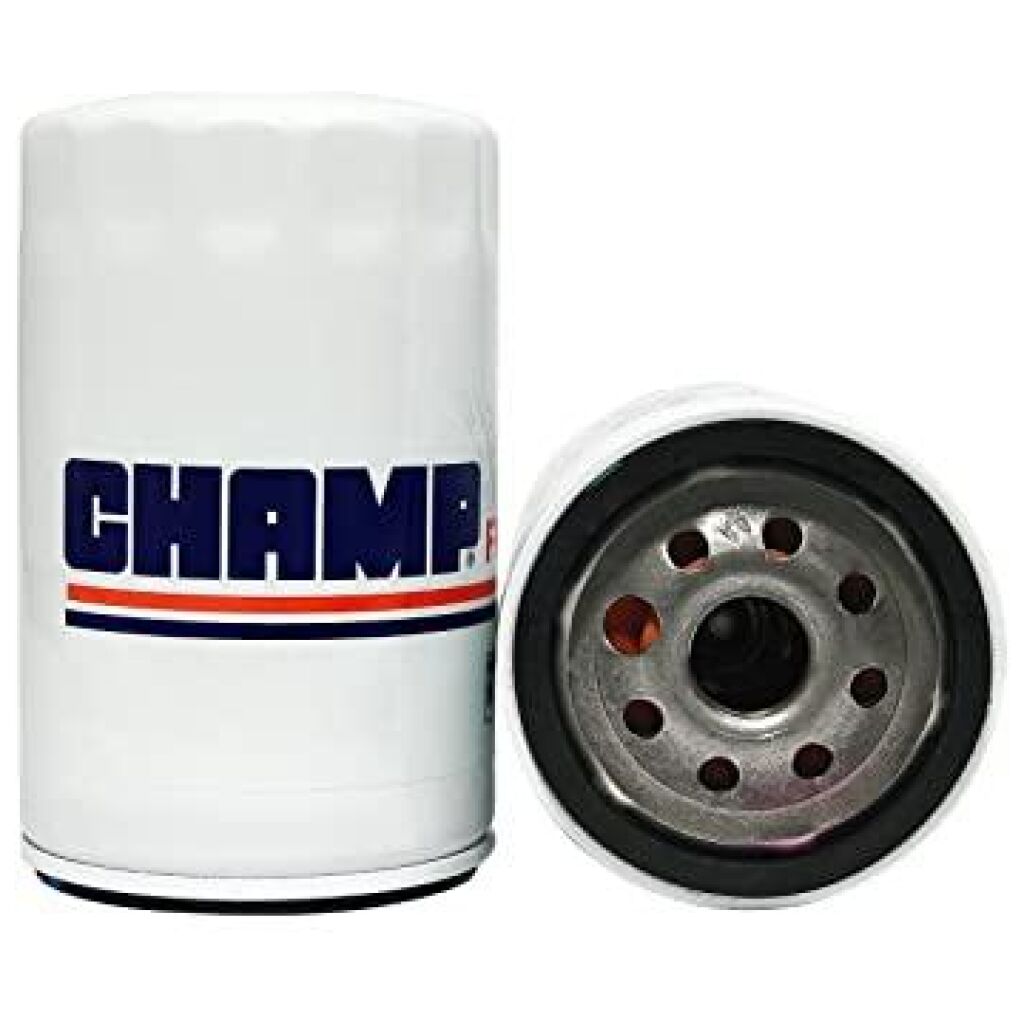

Oljefilter G=13/16-16 P=72mm D=93mm H=132mm Utan Backventil CHAMP PH-7
CHAMP PH-7 är ett fullflödande spin-on-oljefilter. Korsreferens: WIX 51049, FRAM PH11, ACDelco PF31 och Purolator L30005.
Tekniska data
Filtertyp: Spin-on / fullflöde
Höjd: 131,5 mm (avrundat H=132 mm i produktnamnet)
Ytterdiameter: 93 mm
Gänga: 13/16-16
Packning: Ø72 × Ø63 × 4 mm
Backventil: Nej
Bypassventil: Nej
Korsreferenser
WIX 51049
ACDelco PF31
FRAM PH11
Purolator L30005
Komplett passning – vägfordon
AMC / AMERICAN MOTORS
AMX
1969 – V8 343
1969 – V8 390
Ambassador
1966 – L6 199
1968–1969 – V8 290
1970 – V8 304
1968–1969 – V8 343
1970 – V8 360
1968–1970 – V8 390
American
1966 – L6 199
1968 – L6 232
Classic
1965–1966 – L6 199
Javelin
1968–1969 – V8 290
1970 – V8 360
Lerma
1981–1983 – L6 258
Marlin
1966 – L6 199
1967 – V8 290
1967 – V8 343
Rally
1981–1983 – L6 258
Rambler
1966 – L6 199
1966 – L6 232
1966 – V8 287
1969 – V8 290
1969 – V8 390
Rebel
1967 – L6 232
1966 – V8 287
1968–1969 – V8 290
1970 – V8 304
1968–1969 – V8 343
1969–1970 – V8 390
BRICKLIN
SV-1
1974 – V8 360
BUICK
Buick (Full Size)
1959–1962 – V8
Electra
1963–1966 – V8 401
1964–1966 – V8 425
Gran Sport
1966 – V8 401
LeSabre
1963–1964 – V8 401
1964 – V8 425
LeSabre / LeSabre Wagon
1964–1965 – V8 300
1966 – V8 340
Riviera
1963–1966 – V8 401
1964–1966 – V8 425
Skylark
1966 – V8 340
Special
1962–1963 – V6 198
1964–1966 – V6 225
1962–1963 – V8 215
1964–1966 – V8 300
1966 – V8 340
1965 – V8 400
1966 – V8 401
Wildcat
1963–1966 – V8 401
1964–1966 – V8 425
CADILLAC
Cadillac
1964 – V8 – alla motorer
Calais
1965–1967 – V8 429
DeVille
1960–1963 – V8 390
1964–1967 – V8 429
Eldorado
1960–1963 – V8 390
1964–1967 – V8 429
Fleetwood
1960–1963 – V8 390
1964–1967 – V8 429
Series 62
1960–1963 – V8 390
1964 – V8 429
GMC
Pickups & Vans
1964–1966 – V6 305
INTERNATIONAL HARVESTER
Pickup (All)
1971 – L6 232
1972–1973 – L6 258
Pickup / Travelall
1969–1970 – L6 232
1967–1970 – L6 241
Pickup 100
1974 – L6 258
1974 – V8 400
Pickup 200
1974 – L6 258
1974 – V8 400
Scout
1969–1972 – L6 232
1972–1974 – L6 258
Travelall
1973 – L6 258
Van M-Series
1971 – L6 232
1972–1974 – L6 258
JEEP
All Models
1970 – L6 232
1969–1970 – V8 350
CJ-5
1966–1971 – V6 225
CJ-6
1967–1971 – V6 225
Commando
1967–1971 – V6 225
DJ-5
1971 – L6 232
1966–1971 – V6 225
DJ-6
1966–1968 – V6 225
Dispatcher
1966 – V6 225
Jeepster
1971 – L6 232
1969 – V6 225
1970–1971 – V6 225
1971 – V8 304
Pickup J-Series
1971 – L6 232
1971 – L6 258
1971 – V8 304
1971 – V8 350
Wagoneer
1967–1971 – L6 232
1971 – L6 258
1971 – V8 304
1967–1968 – V8 327
1968–1971 – V8 350
MORGAN
Plus 8 (2-Seater)
1968–1970 – Alla motorer
OLDSMOBILE
4-4-2
1965–1967 – V8 400
Cutlass
1965–1967 – V8 330
1965 – V8 400
Delta 88 / Custom Cruiser
1967 – V8 425
F-85
1964–1965 – V6 225
1961–1967 – V8 – alla motorer
Jetfire
1963 – V8 215
Jetstar 88
1965 – V8 330
Oldsmobile
1959–1964 – V8 – alla motorer
1966–1967 – V8 330
1965–1967 – V8 425
Toronado
1966–1967 – V8 425
Vista Cruiser
1964–1965 – V6 225
1965–1967 – V8 330
PONTIAC
Bonneville
1962–1963 – V8 389
1963 – V8 421
Catalina
1962 – V8 389
GTO
1965–1966 – V8 389
Pontiac
1960–1966 – V8 – alla motorer
1966 – V8 389
Tempest
1961–1963 – L4 – alla motorer
1966 – L6 – alla motorer
1961–1966 – V8 – alla motorer
Vista
1963 – V8 389
STUDEBAKER
All
1962–1964 – R6
1962 – V8
Avanti
1964 – 2-portförgasare
1964 – 4-portförgasare
1964 – 4-portförgasare med kompressor
1963 – V8
Övriga katalogapplikationer
Utöver vägfordonslistan omfattar korsreferensen WIX 51049 även följande maskin-, marin- och motorapplikationer.
AERO Marine
AM304JET
AM360JET-SK
Allis Chalmers – entreprenad/traktor
H3 – Allis Chalmers G149
HD3 1961– – Allis Chalmers D175
I60 – diesel
I60 – bensin
I600 – diesel
I600 – bensin
180 – Allis Chalmers 2800 diesel
180 – Allis Chalmers G226 bensin
185 – Allis Chalmers 2800 diesel
190 – Allis Chalmers 2500 bensin
190 – Allis Chalmers 2800 diesel
190XT – Allis Chalmers 2800 bensin
190XT – Allis Chalmers 2900 diesel
190XT Series III – Allis Chalmers 2900 diesel
D15 – Allis Chalmers D175 diesel
D15 – Allis Chalmers G149 bensin
D15 Series II – Allis Chalmers D175 diesel
D15 Series II – Allis Chalmers G149 bensin
D17 – Allis Chalmers D262 diesel
D17 – Allis Chalmers W226 bensin/LPG
D17 Series III – Allis Chalmers D262 diesel
D17 Series III – Allis Chalmers W226 bensin/LPG
D17 Series IV – Allis Chalmers D262 diesel
D17 Series IV – Allis Chalmers W226 bensin/LPG
D19 – Allis Chalmers D262 diesel
D19 – Allis Chalmers G262 bensin
D21 – Allis Chalmers 3400 diesel
D21 Series II – Allis Chalmers 3400 diesel
D21 Series II – Allis Chalmers 3500 diesel
Lastare 650/653/655 – Allis Chalmers 2200
Case / Case-IH, Drott och entreprenad
Betongpump T80 Turbo – diesel
Betongpump TB80 Turbo – diesel
Dieselmotor A504BD
Dieselmotor A504BDT
Grävmaskin 40BLC Series B – Case A504BD diesel
Grävmaskin 40EC Series A – Case A504BD diesel
Grävmaskin 40EC Series B – Case A504BD diesel
Grävmaskin 40YC Series A – Case A504BD diesel
Grävmaskin 40YC Series B – Case A504BD diesel
Grävmaskin 980 – Case 504BDT diesel
Lastare W18 – Case A401BD diesel / A401BDT turbo diesel
Lastare W20 – Case A401BD diesel / A401BDT turbo diesel
Lastare W24B – Case A504BD diesel / A504BDT turbo diesel
Lastare W26B och W26LF – Case A504BDT turbo diesel
Hjultraktor 1170 – Case A451BD
Hjultraktor 1175 – Case 451 turbo diesel
Hjultraktor 1270 – Case 451D
Hjultraktor 1370 – Case A504BD / A504BDT
Drott 1500, 1800, 2500, 40BLC, 40EC, 40YC och 5500 – Case 504BD/504BDT diesel
Marin
Chris-Craft 225B; 283FLV
Crusader 260; Challenger 320; Charger 140, 180, 220, 250, 280 och 320; Cadillac-motor; Chevrolet V8 283
Gray 109, 125, 135, 170, 178, 188, 215, 225, 238, 260, 280, 310, 70, 80, A136, A160, C138, C175, C195, C220, C280 och FOUR-162
MerCruiser 300
OMC 150 (V6), 155, 185 och 200 (V8)
Universal Saber V6 och Super Saber V6
Volvo AQ210/270B
GM och övriga motor-/maskinapplikationer
GM V6 305C, 305E och 351C
Farmhand Haystacker – GMC-motor
IHC Windrower 275 och 375 – AMC R6 232
IHC/Navistar V8 400
Tennant Sweeper 600 – bensinmotor
