Beskrivning

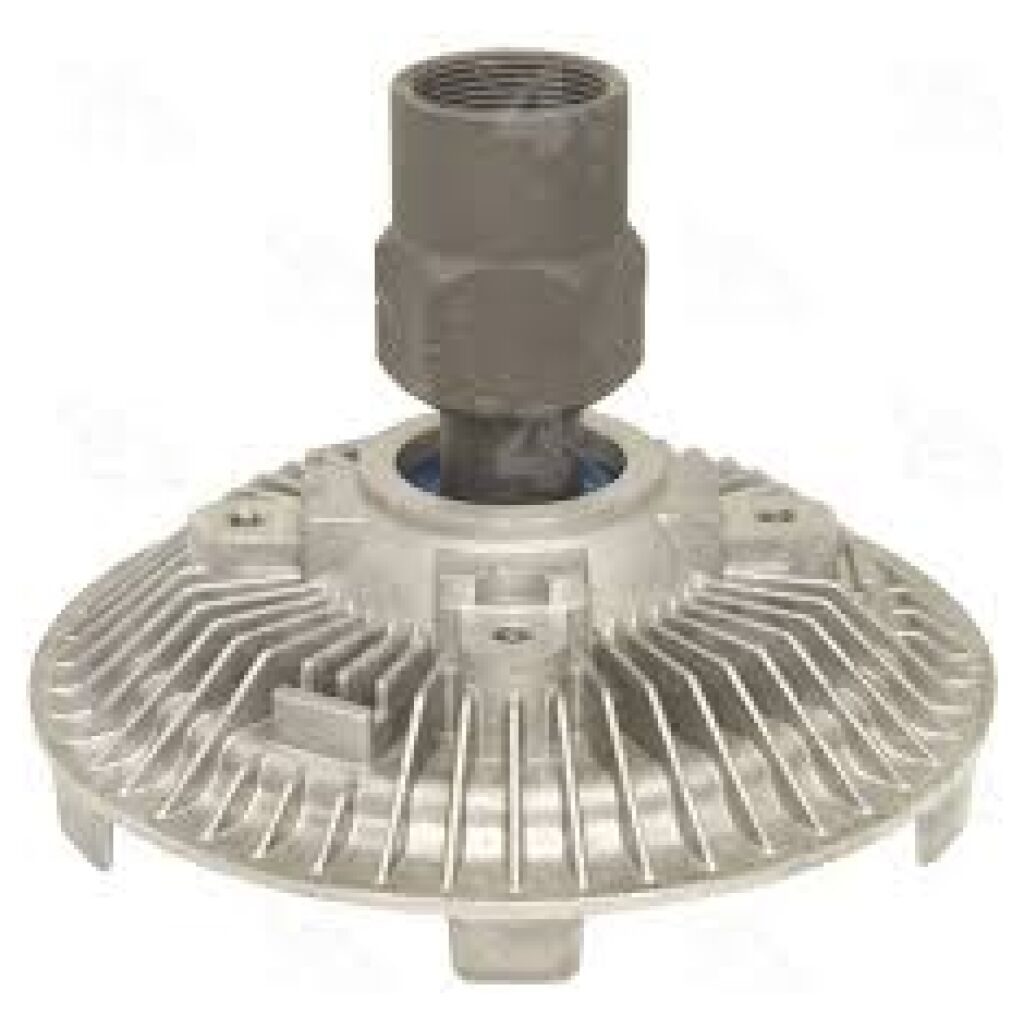

Fläkt koppling Imperial # 2718
| FORD | AEROSTAR | 1986-1997 |
| FORD | F-100 | 1997 |
| FORD | RANGER | 1991-1997 |
| MAZDA | B3000 | 1994-2008 |
| Bolt Quantity | 4 |
| Bolt Thread | M6 x 1.0 Hole |
| Clutch Type | B – Non-Thermal and Std Thermal |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Drawing Type | B |
| Duty Rating | Standard |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 3.250 |
| Fan Bolt Circle MM | 82.6 |
| Fan Mount Dia. IN | 2.62 |
| Fan Mount Dia. MM | 66.6 |
| Fan Mount Height IN | 2.760 |
| Fan Mount Height MM | 70.1 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 1.44 (36mm) HEX |
| Mount Dia. MM | 36 HEX |
| Mount Hole Qty | 4 |
| Mount Type | Hex |
| Mounting Hardware? | Not Included |
| New or Reman | New |
| O.E. Replacement? | Yes |
| Overall Dia. IN | 5.990 |
| Overall Dia. MM | 152.1 |
| Overall Height IN | 4.34375 |
| Overall Height MM | 110.5 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.703125 |
| Pilot Depth MM | 17.8 |
| Pilot Dia. IN | M30 x 1.500 |
| Rotation | Std |
| Style | STANDARD DUTY |
| Type | Thermal |
| Wire Guage | Uses Original Equipment Connector |
| Wire Quantity | Uses Original Equipment Connector |
