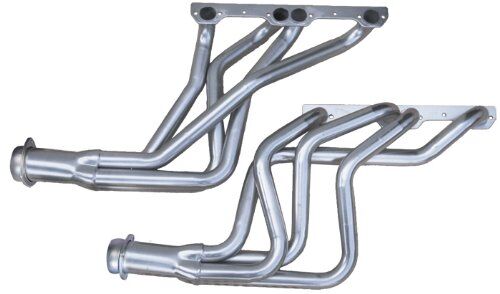

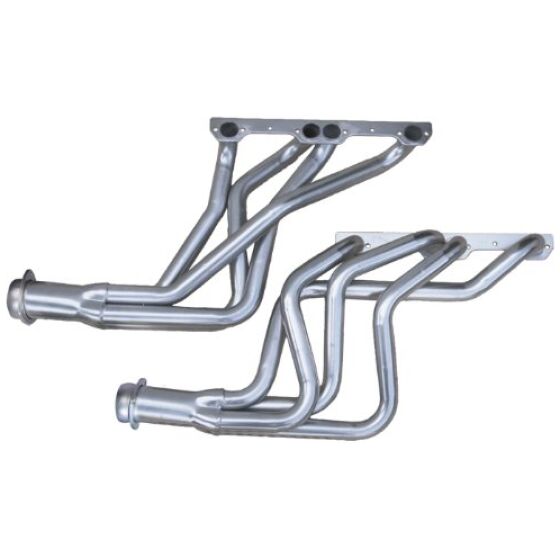

Heders Hedman 68278 CAMARO, CHEVY II, NOVA 67-81 SB

Beskrivning

Elite Ultra-Duty HTC Coated Full Length Headers

• 1967-81 Camaro
• 1968-71 Chevy II
• 1968-71Nova
• Tube Size: 1-5/8″
• Collector Size: 3″

Hedman 68278 Details

GM Cars

• Not applicable or intended for street or highway use. Legal only for racing vehicles which may never be used upon a highway.
• Without smog injection or injection heads.
• Modification to stock exhaust required to retain catalytic converter.
• Not legal for sale or use in California on pollution controlled motor vehicles.
• Will not fit (Saginaw) close ratio P/S with 825 power steering box.
• Elite replacement gasket #500-27520.
• *CAMARO ONLY*On some models it may be necessary to remove Z bars. (SS Series)
• *CAMARO ONLY*Must modify rotary A/C bracket.
• PASSAR ALLA SMALLBLOCK MOTORER
• CHEVROLET 1955-99

Specifications:

Tube Diameter

1.625

Collector Tube Size (in.) 3

Engine Make/Size

Chevy Small Block (262-400)

Tube Direction

Down Swept

Coating/Finish

Metallic Ceramic

Port Shape

Round

Material

Mild Steel

Collector Diameter (in.)

3

Header Finish

Thermal coated

Header Material

Steel

Header Style

Full-length

Motor Mounts Included

No

Primary Tube Diameter (in.)

1 5/8

Primary Tube Gauge

14-gauge
