Beskrivning

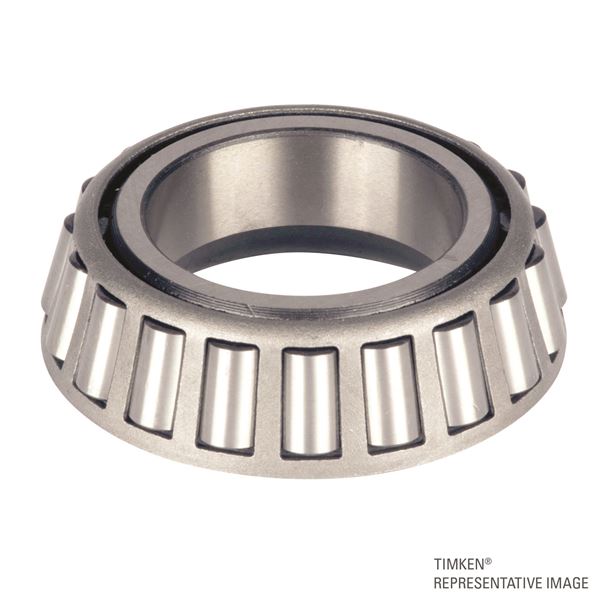

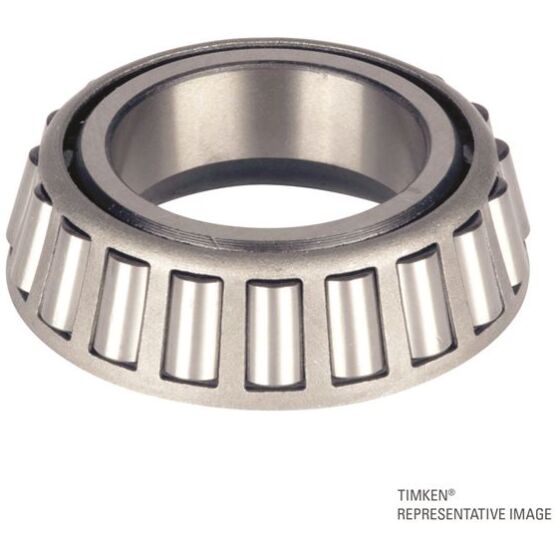

Cone Part Number |
3774 |
Design Units |
Imperial |
Cage Type |
Stamped Steel |
| C1 – Dynamic Radial Rating (Two-Row, 1 million revolutions)1 | 47800 lbf213000 N |
| C90(2) – Dynamic Radial Rating (Two-Row, 90 million revolutions)2 | 12400 lbf55100 N |
Dimensions
d – Bore |
1.5625 in39.688 mm |
B – Cone Width |
1.1930 in30.302 mm |
Abutment and Fillet Dimensions
| R – Cone Backface “To Clear” Radius3 | 0.14 in3.600 mm |
da – Cone Frontface Backing Diameter |
1.93 in49 mm |
db – Cone Backface Backing Diameter |
2.17 in55 mm |
Ab – Cage-Cone Frontface Clearance |
0.06 in1.5 mm |
Aa – Cage-Cone Backface Clearance |
0.06 in1.5 mm |
| a – Effective Center Location4 |
